Description

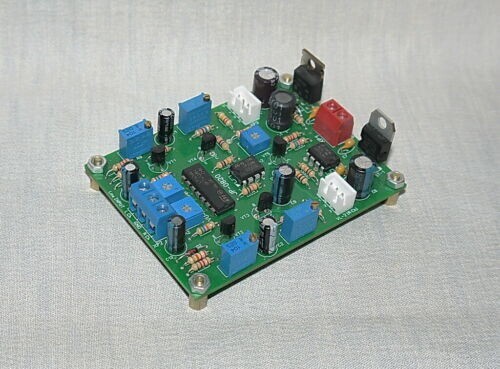

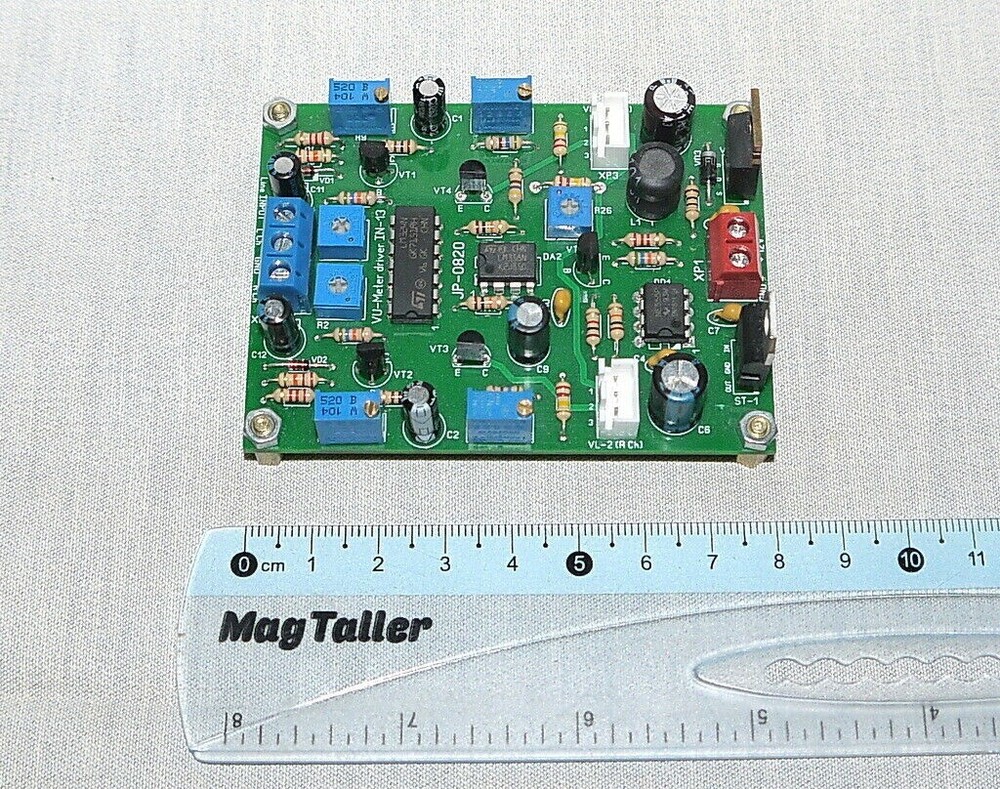

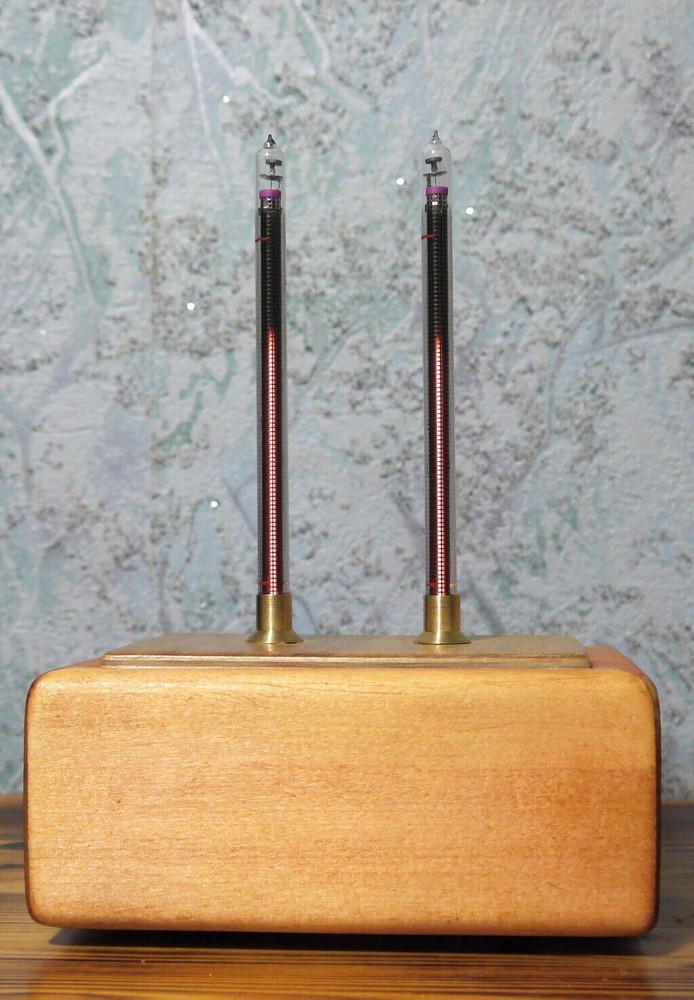

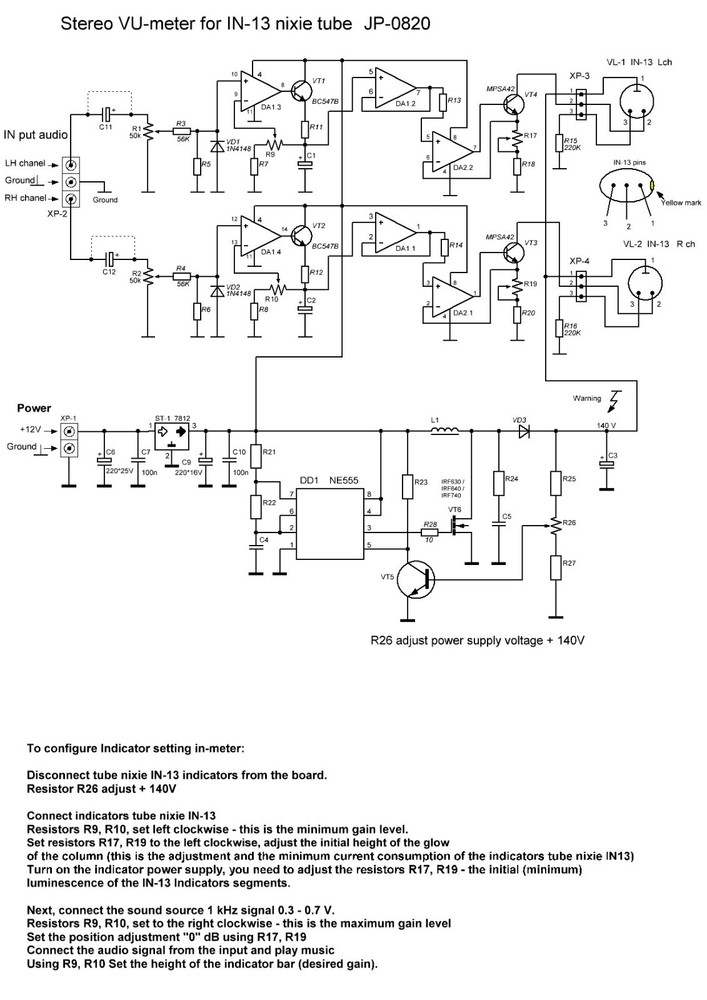

Stereo VU meter driver PCB tested + IN-13 nixie tube complete All This is my board to drive vu meter with Nixie tubes IN-13 . NEW Version ! Features of the new driver version. The ability to adjust the overall level of the input signal. The ability to fine-tune the gain level for the indicators. The maximum audio input level is 10 V (20 V). The ability to connect the driver to the output of the power amplifier directly. This is a driver for measuring the audio signal level on the IN-13 indicators. (No nixie tube !!) You will receive a PCB fully assembled and tested module + 2 pcs IN-13 nixie tube. The buyer is sent a complete indicator diagram with all denominations. You only need to module from the received to connect the tube IN-13, to connect the supply voltage and input to the audio device. You should have good soldering skills and understanding electronics. Power supply + 12V 0.5A is not included in the delivery set ! The final finishing, body and nixie mounts, you must do yourself. This kit a good set for creativity. VU-METER can be used to control the level of the signal output of the power amplifier. Also it can be used as a separate device, such as I did. The work of my video display can be viewed at the link: https://youtu.be/tCuAAUzDfHE Main characteristics : Supply voltage DC, V: + 12V (+11V ... +19V) Consumption current, idle mode, A: 0.045 Consumption current, nominal mode, A: 0.12-0.16 (120-160mA) Consumption current, maximum mode, A: 0.210 (210mA) Input audio signal, level, V: 0.25-0.75 (max 10V -20V ) PCB dimensions: 80mm * 60mm (3.14 * 2.36 inch) Attention ! Be careful, the device has a high voltage is 140V !!! Driver module remains in operation with a minimum supply voltage of 8V. You can feed the maximum device voltage of 19V, but it is necessary to stabilizer install an additional radiator cooling . If you have any questions, can I ask them to write me a message, I will answer you. Best wishes. ------------------------------------------------------------- Winning bidders must pay within 4 days of auctions end. Will combine shipping on multiple purchases, just request an invoice before you pay. Watch Video Video will open in a new window Using the eBay App? Paste link into a browser window: [isdntekvideo]
