Description

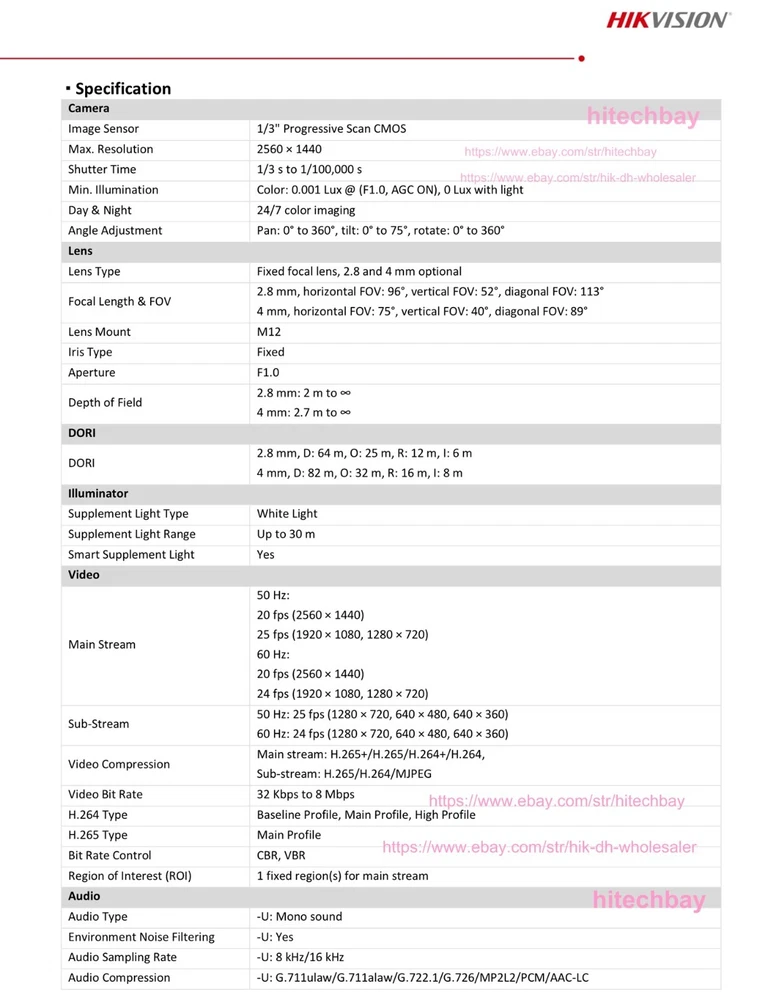

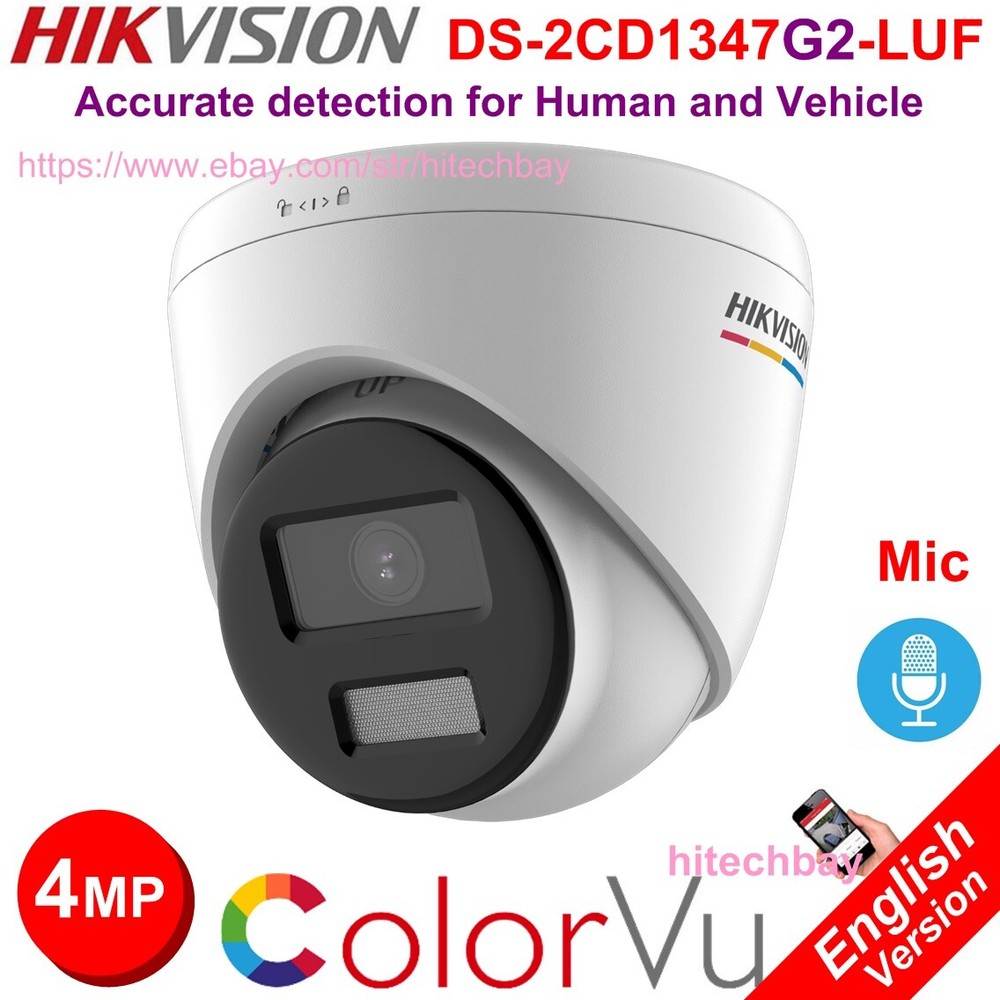

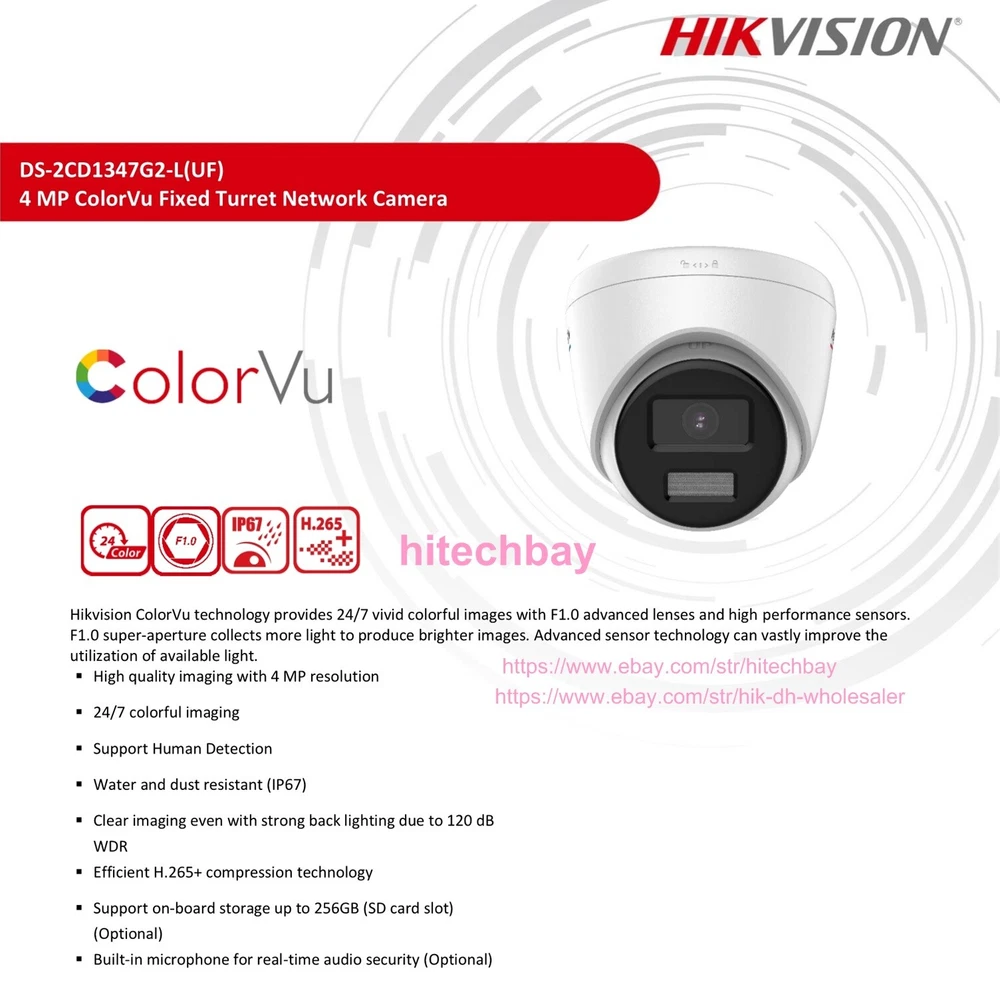

Hikvision DS-2CD1347G2-LUF 4MP ColorVu Turret Camera Built-in Mic PoE Network >>> Welcome to the bulk order of Hikvision original English products with attractive price, please contact us now! <<< Note*: Official Hikvision English version and Firmware upgradeable. Features High quality imaging with 4 MP resolution 24/7 colorful imaging Support Human Detection Water and dust resistant (IP67) Clear imaging even with strong back lighting due to 120 dB WDR Efficient H.265+ compression technology Support on-board storage up to 256GB (SD card slot) Built-in microphone for real-time audio security Specifications Camera Image Sensor 1/3" Progressive Scan CMOS Max. Resolution 2560 × 1440 Min. Illumination Color: 0.001 Lux @ (F1.0, AGC ON),0 Lux with light Shutter Time 1/3 s to 1/100,000 s Day & Night 24/7 color imaging Angle Adjustment Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360° Lens Lens Type Fixed focal lens, 2.8 and 4 mm optional Focal Length & FOV 2.8 mm, horizontal FOV: 96°, vertical FOV: 52°, diagonal FOV: 113° 4 mm, horizontal FOV: 75°, vertical FOV: 40°, diagonal FOV: 89° Lens Mount M12 Iris Type Fixed Aperture F1.0 Depth Of Field 2.8 mm: 2 m to ∞ 4 mm: 2.7 m to ∞ DORI DORI 2.8 mm, D: 64 m, O: 25 m, R: 12 m, I: 6 m 4 mm, D: 82 m, O: 32 m, R: 16 m, I: 8 m Illuminator Supplement Light Type White Light Supplement Light Range Up to 30 m Smart Supplement Light Yes Video Main Stream 50 Hz: 20 fps (2560 × 1440) 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440) 24 fps (1920 × 1080, 1280 × 720) Sub-Stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360) Video Compression Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG Video Bit Rate 32 Kbps to 8 Mbps H.264 Type Baseline Profile,Main Profile,High Profile H.265 Type Main Profile Bit Rate Control CBR,VBR Region Of Interest (ROI) 1 fixed region(s) for main stream Audio Audio Type -U: Mono sound Environment Noise Filtering -U: Yes Audio Sampling Rate -U: 8 kHz/16 kHz Audio Compression -U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC Audio Bit Rate -U: 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) Network Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP Simultaneous Live View Up to 6 channels API Open Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)),ISAPI,SDK User/Host Up to 32 users 3 user levels: administrator, operator, and user Security Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address) Client iVMS-4200,Hik-Connect Web Browser Plug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+ Image Wide Dynamic Range (WDR) 120 dB SNR ≥ 52 dB Day/Night Switch Day,Night,Auto,Schedule Image Enhancement BLC,HLC,3D DNR Image Settings Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser Privacy Mask 4 programmable polygon privacy masks Interface Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB Built-In Microphone -U: Yes Reset Key -F: Yes Event Basic Event Motion detection,video tampering alarm,exception Linkage Upload to FTP/memory card (-F), notify surveillance center, send email, trigger recording (-F), trigger capture General Power 12 VDC ± 25%, 0.4 A, max. 5 W,Ø5.5 mm coaxial power plug, PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W Material Metal & Plastic Dimension Ø109.9 mm × 103.6 mm (Ø4.3 × 4.1\")" Package Dimension 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6") -L: Approx. 380 g (0.8 lb.); -LUF: Approx. 420 g (0.9 lb.) With Package Weight -L: Approx. 620 g (1.4 lb.); -LUF: Approx. 650 g (1.4 lb.) Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Startup And Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Language English, Ukrainian General Function Heartbeat,anti-banding,mirror,password protection,password reset via email Approval EMC FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, KC: KN32: 2015, KN35: 2015 Safety UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005 Environment CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 Protection IP67: IEC 60529-2013 Package includes: 1 x DS-2CD1347G2-LUF 4MP ColorVu Turret Camera 1 x User Manual 1 x Installation screws Delivery Items will be shipped within 1-5 business days after the payment is cleared. Please do make sure that your address includes your phone number . It is necessary for shipping, or your order will be delayed till we get your phone number. International shipping takes time and your patience is highly appreciated. The arrival time depends on some factors and different areas. Contact us Any questions, please feel free to contact us by eBay message in English, we will reply to you within 1 business day (not include public holidays). If you don't get response within 1-2 business days, please check your eBay Messages or email in case your email provider has an overaggressive spam filter blocking eBay or my emails. Feedback It is highly appreciated if you would make a positive feedback. We try our best service to promise our customer 100% satisfied, and only strive for 5 stars rating and the positive feedback. 3 stars rating or neutral feedback means you are not satisfied, please feel free to contact us for a solution before you leave the feedback. Your positive feedback is your greatest encouragement for us to do it better.
