Description

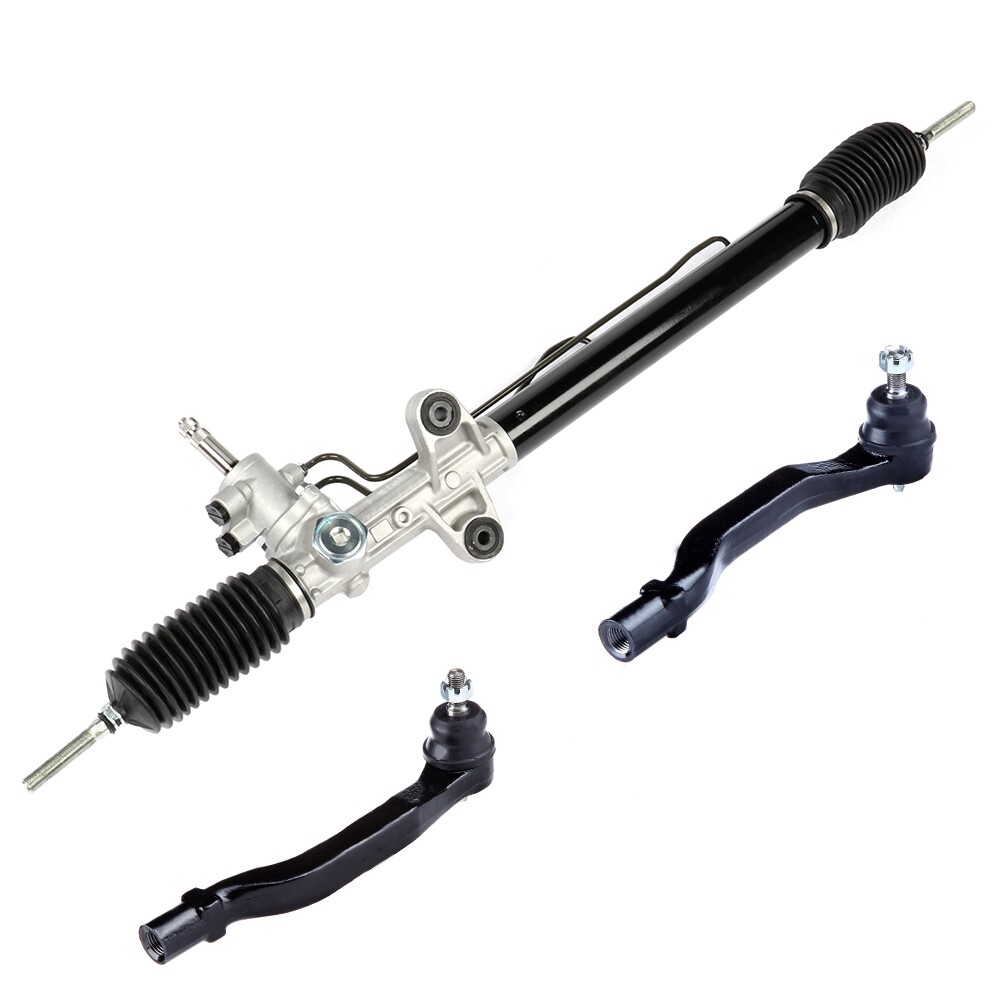

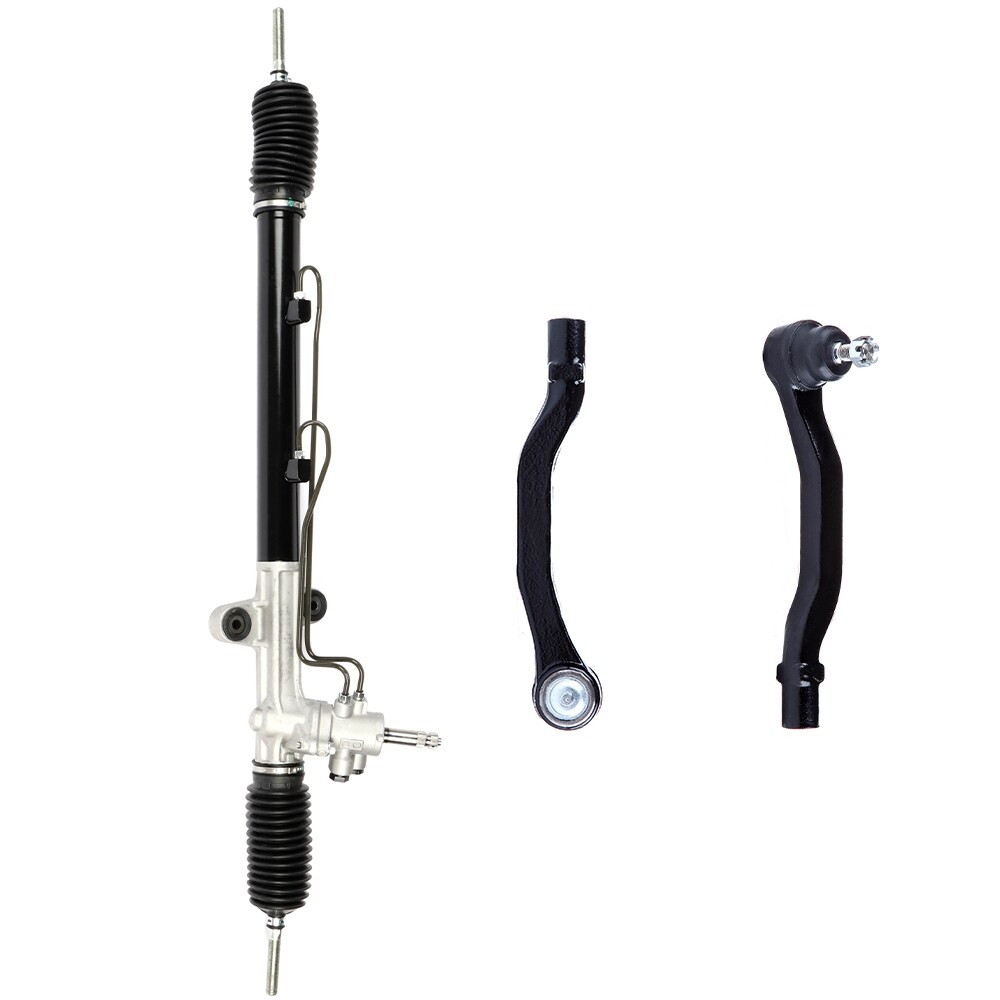

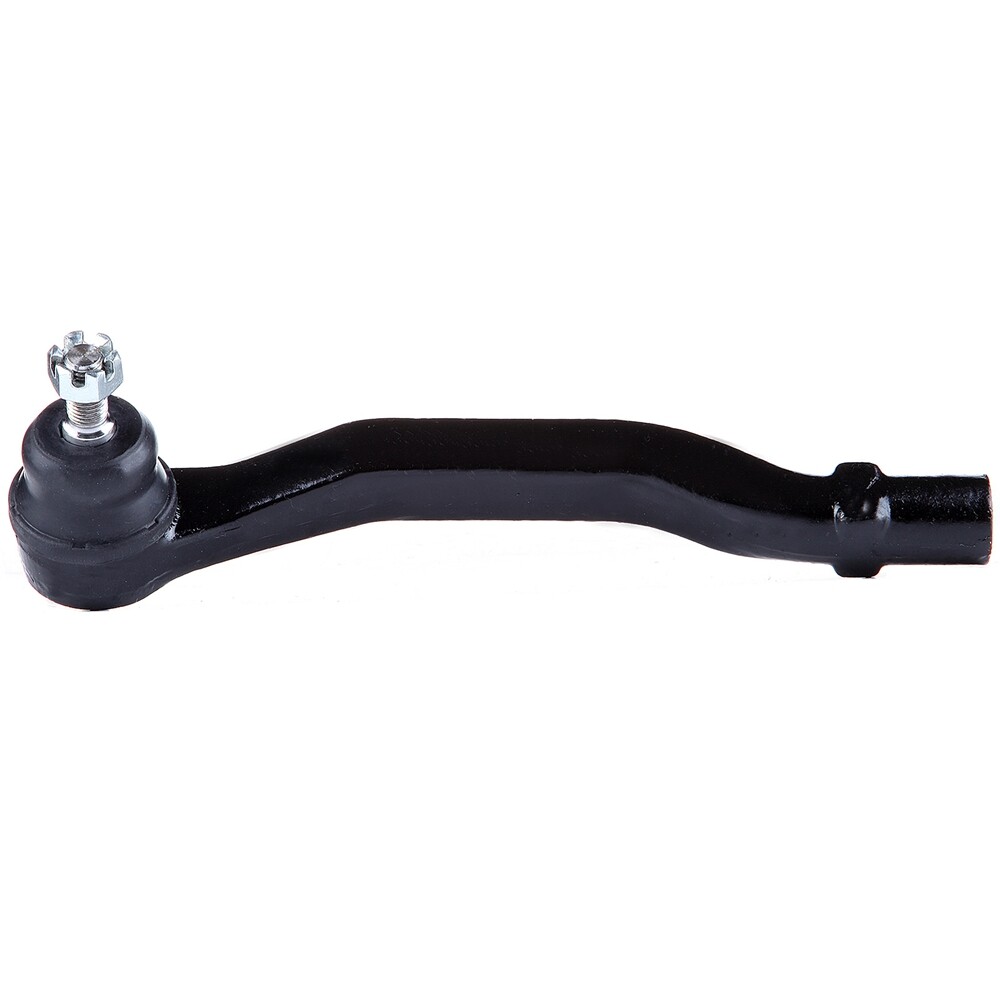

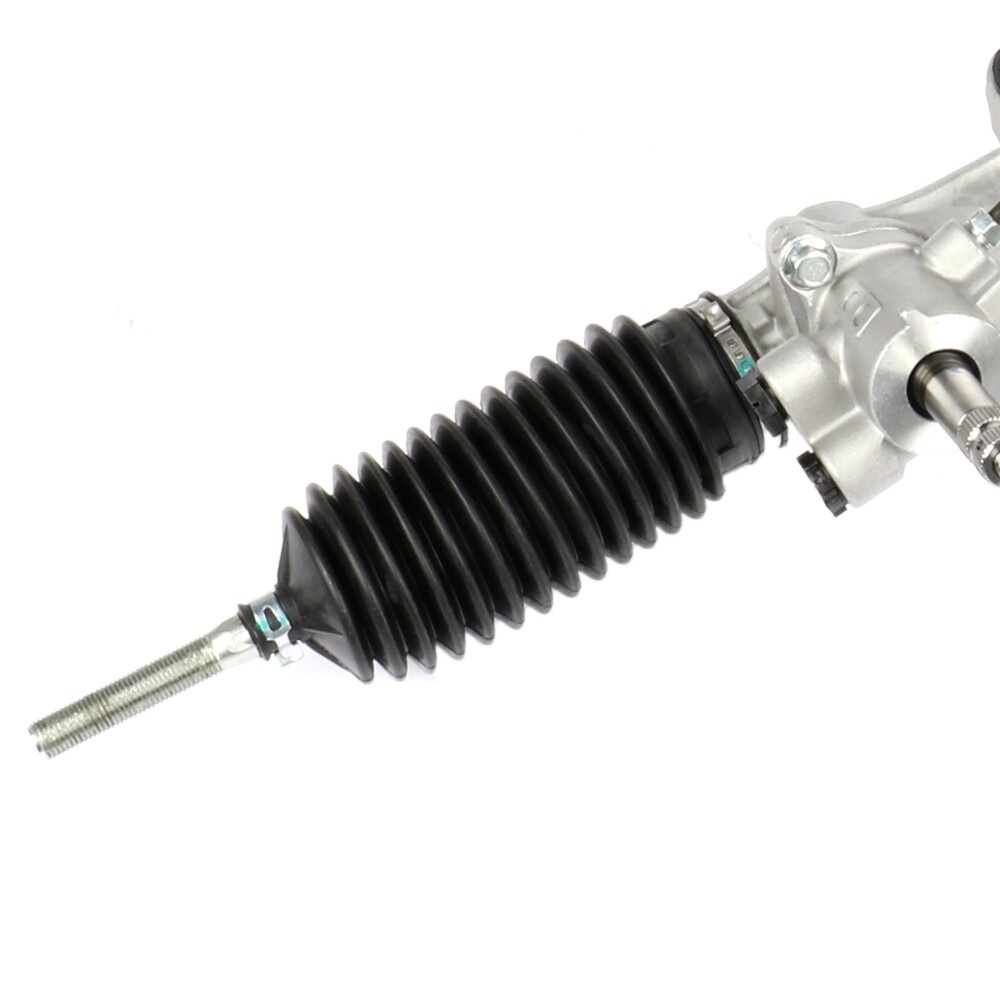

For HONDA ACCORD 1998-2002 4 cylinder ACURA CL 2001-2003 Excluding S-Type ACURA TL 2002-2003 Type-S How to Replace a Power Steering Rack： Complete Power Steering Rack & Pinion +Tie Rods For 1998-2002 Honda Accord For HONDA ACCORD 1998-2002 4 cylinder ACURA CL 2001-2003 Excluding S-Type ACURA TL 2002-2003 Type-S How to Replace a Power Steering Rack： Place the wheels in the straight-ahead position. The steering wheel should be in the neutral position. Remove the key from the ignition and make sure the steering wheel is locked. Do not turn the steering wheel while the rack is being removed. Doing so may cause the spiral cable in the steering wheel to loosen and become useless. Loosen all wheel nuts and raise and support the vehicle using jack stands. Remove both front wheels. Remove the steering shaft coupling outer seal and loosen the upper hold-down bolt on the steering shaft coupling assembly. Remove the outer tie rod end. You may need to use a special tie rod end puller to remove it, do not tap the tie rod end itself. Remove all parts that require access to the frame mounting bolts, lines, and steering coupling. Remove the power steering rack mounting bolts, or disconnect the power steering high pressure and return lines. It may be easier to wiggle the power steering pipe fitting with a wrench after removing the rack bolts and moving it a little. Place the drain pan under the vehicle and remove the hydraulic power steering pressure hose and power steering return hose from the power steering rack. Twist, rotate and shake it out through the wheel well opening. If the new rack has new tie rod ends, measure the overall length of the old rack and tie rod assembly. Set the overall length of the new assembly to the same measurement by twisting the tie rod ends onto the threads. Keep the rack centered as you do this and split the overlap difference between the left and right rod ends, otherwise the steering wheel will be off-center when you are finished. If you are reusing the old tie rod ends, loosen the lock nuts. Count how many turns it takes to remove the tie rod ends. Install the new rack using the same words you used to take the new rack out. Reconnect the power steering lines, using new "O" rings if necessary. Usually, the high pressure lines use a slightly larger "O" ring, so be careful not to mix them up. Reconnect the steering shaft coupling assembly and bolt the rack in place. Reinstall the tie rod ends onto the steering knuckle. Secure the slotted nut with a new cotter pin; never reuse the old cotter pin. Put the wheel back on and tighten the nut to the specified torque. Remove the return line from the power steering pump and place the end in a bucket. Top up the power steering pump and start the engine until clean fluid flows from the return line. You can install an inline filter in the return line to protect the new rack Align the front end to reset the toe adjustment to spec, otherwise the vehicle will handle poorly and the tires will wear quickly. Note: We Professional installation is highly recommended Please Check Carefully Whether It Matches Your Car Model Before Placing An Order Item Specifics Brand Mirror-Zone Manufacturer Part Number 12888432 OE/OEM Part Number Rack Replacement Kit,Rack And Pinion,Power Rack Parts Manufacturer Warranty 1 Year Vintage Car Part No Fitment Type Direct Replacement Performance Part Yes Universal Fitment No Material High Quality Steel Type Rack & Pinion Complete Unit,Steering Rack,Steering Gear Transmission Type Automatic Interchange Part Number 26-1797,25521,ES3490,ES3491 Superseded Part Number 53601-S84-A02 Item Color As The Picture Item Surface Finish Polished,Rust Protected Item Features Greasable Item Packing Dust Plug Steering Rack type Hydraulic Other Part Number Steering gear Shipping All Orders Will Ship Within 1 Business Days After Payment Verified, Most Of Our Items Are Shipped With FedEx or Smaller Sized Items Are Shipped With USPS Priority Mail or First Class Mail. You May Expect Your Order To Be Delivered Between 3 To 7 Business Days Of Placing Your Order If It is Delivered By UPS or 2-7 Days By USPS. We Will Ship Items Over 3lbs with FedEx To U.S. Domestic & Canada. Buyers Outside U.S. (Except Canada) Are Responsible For Any Brokerage's Fee Charged By FedEx. Canada & International Customer Please Note: Canadian Government Might Charge A Duty Tax (Brokerage Fees). This is Not Charged by Our Company and We Are Not Responsible for This Brokerage Fees. Other International Customer Are Responsible For Duties And Taxes. If You Have Any Question Regarding Why You Are Being Charged This Fee. Please Refer To Your Government Official Website. Brokerage Fee Varies Upon The Value or The Product, For Rate Information, Please Refer To UPS. Free Ship or Discounted Rate Only Applies Within 48 States Of USA. For Item Ship To (PO Box, Hi, Pr, Apo, GU, Vi, Mp And International), Additional Shipping Charge Will Apply. Please Email Us For More Information Before Placing Order. All Packages Will Be Inspect Before Shipping, We Will Provide All Packing Material Needed For Your Package For Shipping Such As Boxes, Cushioning And Tape To Improve Shipping Quality. Due to high volume of shipments every day, once we received your payment, we will ship out the order as soon as possible, so there is high possibility of not able to cancel any order or changing the shipping address for you, so please make sure you really need the item or shipping address is the correct one before placing order to avoid any issue, thank you for your understanding and cooperation. Payment We Will Only Accept PayPal Payment or Credit/Debit Card Through PayPal, We Will Only Ship To PayPal Confirmed And Verified Address, Please Update Your Shipping Address On eBay And PayPal Before Placing The Order. For Any Returned/Undeliverable Package, Reshipping Fee Will Be Charged. Sales Tax Will Be Applied To All California Shipment. All E-Check Payments Such as Bank Transfer or Credit Card Will Be Processed Once Payment Clears. For Accurate And Fast Service, Please Update Your Shipping Address or Choose The Correct Shipping Address Before Submitting Payment. Positive Feedback Will Be Left Immediately After Payment is Received in Full. We Would Appreciate it If You Could Do The Same. If You Have Any Problems or Concerns, Please Contact us Prior To Leaving Feedback And We Will Gladly Assist You. Satisfaction Guaranteed. We DO NOT SHIP TO PO BOXES, And Customer Needs To Provide a Physical Address. Returns All of Our Items Are 100% Brand New, We Do Not Sell Anything Other Than That. If The Item Shows Up Defective or Broken, Please Contact Us Within 3 Business Days By Using "Ask A Question" Link Located At The Bottom of Our Listing. Your Questions/Concerns Will Be Responded Within 24 Hours Monday To Friday. Buyers May Contact us On The Weekends or Pubic Holidays And We Will Respond On The Next Working Day. Some of Our Items May Not Be Legal For Street Use in Some States. It is Your Responsibility to Check Your Local Law Enforcement for Street Use. We Will Offer Replacements, Exchange or Full Refund. 100% Satisfaction Guaranteed. We Will File Damage Or Lost Claim For Our Buyers And Guaranteed Buyers Will Receive Products In A Timely Manner. For Better And Faster Service, We Suggest Buyers Provides Their Contact Phone Numbers For us And our Customer Service Team Will Contact Them For Additional Information. Thank You. Contact Us How Should You Contact us? Please Read The Item Description And See if The item Fits Your Vehicle Exactly. If You Found Any questions, Feel Free to email us by "Ask a question" Our Office Hours Are Monday - Friday 8:00am - 5:00pm PST / 11:00am - 8:000pm ET, And We Will Reply All E-Mails In The Order It Was Receive. About Us Mirrorzone's mission is to bring the best quality automotive Mirrors to our customers with satisfaction. Our dedicated customer support team always put in 100% effort with their acquired knowledge in order to assist every customer with what they need. Throughout the process of quality control, research and developing with the factories and suppliers and our passion of automotive parts, we are confident that we can continue to innovate our products and provide the best automotive parts online shopping experience to our customers. SALES INFO Shop Category Store Home Window Regulator Mirrors Window Switch Headlight Bumper Leveling Lift Kits Door Lock Timing Chain Kit Drive Shaft Assembly Power Steering Rack Lift Support Struts Roof Rack Lawn Mower Series Clearance Light Armrest Cover Truck Box Mud Flap Guards Parking Distance Sensor Receiver Hitch Horn Front Bumper Rear Spoiler Rear Cargo Shield Shade Headlights Assembly Car Door Handle Wheel Adapter Car Tool Sun Visors Shaft Assembly 3rd Third Brake Tail Light Oil Level Dipstick Jack Stands Door Lock Actuator Truck Big Side mirror Truck Small Side mirror Tow Mirror Pair Tow Mirror Pcs Other Hot Item Left Right W/Power Smoke Signal Tow Mirrors For 1999-2007 Ford F250 F350 F450 USD 124.99 1 Pair Right Left Side Power Heated Turn Signal Mirrors For 2015-2020 Ford F-150 USD 129.99 Spoiler Wing For 1997-2001 Honda CRV Factory Style Lightweight Rear Primed USD 46.99 Chrome Housing Tow Mirrors Power Signal For 2008-2016 Ford F250-550 Super Duty USD 141.99 1x Red Hydraulic Pull Back Ram 10 Ton Porta Power Frame Machine Puller Body Shop USD 62.49 New List Item 1 Pcs Front Driveshaft Replacement For 2007-2010 BMW X5 3.0L l6 26207556019 USD 99.99 Front Driveshaft For BMW 530e 530i 540i 740e 740i 745e 750i xDrive 26208632583 USD 106.99 Front Driveshaft For 2007-2008 Jeep Grand Cherokee 3.0L 3.7L V6 52853432AA USD 127.99 Front Driveshaft For 2015-2017 Mercedes-Benz C300 2.0L 1991CC l4 2044100000 USD 98.99 1 Pcs Front Driveshaft Replacement For 2001-2003 BMW X5 3.0L l6 26207508629 USD 94.99 Help & Info Payment Policy Shipping Policy Return Policy FAQ About Us Complete Power Steering Rack & Pinion +Tie Rods For 1998-2002 Honda Accord For HONDA ACCORD 1998-2002 4 cylinder ACURA CL 2001-2003 Excluding S-Type ACURA TL 2002-2003 Type-S How to Replace a Power Steering Rack： Place the wheels in the straight-ahead position. The steering wheel should be in the neutral position. Remove the key from the ignition and make sure the steering wheel is locked. Do not turn the steering wheel while the rack is being removed. Doing so may cause the spiral cable in the steering wheel to loosen and become useless. Loosen all wheel nuts and raise and support the vehicle using jack stands. Remove both front wheels. Remove the steering shaft coupling outer seal and loosen the upper hold-down bolt on the steering shaft coupling assembly. Remove the outer tie rod end. You may need to use a special tie rod end puller to remove it, do not tap the tie rod end itself. Remove all parts that require access to the frame mounting bolts, lines, and steering coupling. Remove the power steering rack mounting bolts, or disconnect the power steering high pressure and return lines. It may be easier to wiggle the power steering pipe fitting with a wrench after removing the rack bolts and moving it a little. Place the drain pan under the vehicle and remove the hydraulic power steering pressure hose and power steering return hose from the power steering rack. Twist, rotate and shake it out through the wheel well opening. If the new rack has new tie rod ends, measure the overall length of the old rack and tie rod assembly. Set the overall length of the new assembly to the same measurement by twisting the tie rod ends onto the threads. Keep the rack centered as you do this and split the overlap difference between the left and right rod ends, otherwise the steering wheel will be off-center when you are finished. If you are reusing the old tie rod ends, loosen the lock nuts. Count how many turns it takes to remove the tie rod ends. Install the new rack using the same words you used to take the new rack out. Reconnect the power steering lines, using new "O" rings if necessary. Usually, the high pressure lines use a slightly larger "O" ring, so be careful not to mix them up. Reconnect the steering shaft coupling assembly and bolt the rack in place. Reinstall the tie rod ends onto the steering knuckle. Secure the slotted nut with a new cotter pin; never reuse the old cotter pin. Put the wheel back on and tighten the nut to the specified torque. Remove the return line from the power steering pump and place the end in a bucket. Top up the power steering pump and start the engine until clean fluid flows from the return line. You can install an inline filter in the return line to protect the new rack Align the front end to reset the toe adjustment to spec, otherwise the vehicle will handle poorly and the tires will wear quickly. Note: We Professional installation is highly recommended Please Check Carefully Whether It Matches Your Car Model Before Placing An Order Shipping All Orders Will Ship Within 1 Business Days After Payment Verified, Most Of Our Items Are Shipped With FedEx or Smaller Sized Items Are Shipped With USPS Priority Mail or First Class Mail. You May Expect Your Order To Be Delivered Between 3 To 7 Business Days Of Placing Your Order If It is Delivered By UPS or 2-7 Days By USPS. We Will Ship Items Over 3lbs with FedEx To U.S. Domestic & Canada. Buyers Outside U.S. (Except Canada) Are Responsible For Any Brokerage's Fee Charged By FedEx. Canada & International Customer Please Note: Canadian Government Might Charge A Duty Tax (Brokerage Fees). This is Not Charged by Our Company and We Are Not Responsible for This Brokerage Fees. Other International Customer Are Responsible For Duties And Taxes. If You Have Any Question Regarding Why You Are Being Charged This Fee. Please Refer To Your Government Official Website. Brokerage Fee Varies Upon The Value or The Product, For Rate Information, Please Refer To UPS. Free Ship or Discounted Rate Only Applies Within 48 States Of USA. For Item Ship To (PO Box, Hi, Pr, Apo, GU, Vi, Mp And International), Additional Shipping Charge Will Apply. Please Email Us For More Information Before Placing Order. All Packages Will Be Inspect Before Shipping, We Will Provide All Packing Material Needed For Your Package For Shipping Such As Boxes, Cushioning And Tape To Improve Shipping Quality. Due to high volume of shipments every day, once we received your payment, we will ship out the order as soon as possible, so there is high possibility of not able to cancel any order or changing the shipping address for you, so please make sure you really need the item or shipping address is the correct one before placing order to avoid any issue, thank you for your understanding and cooperation. Payment We Will Only Accept PayPal Payment or Credit/Debit Card Through PayPal, We Will Only Ship To PayPal Confirmed And Verified Address, Please Update Your Shipping Address On eBay And PayPal Before Placing The Order. For Any Returned/Undeliverable Package, Reshipping Fee Will Be Charged. Sales Tax Will Be Applied To All California Shipment. All E-Check Payments Such as Bank Transfer or Credit Card Will Be Processed Once Payment Clears. For Accurate And Fast Service, Please Update Your Shipping Address or Choose The Correct Shipping Address Before Submitting Payment. Positive Feedback Will Be Left Immediately After Payment is Received in Full. We Would Appreciate it If You Could Do The Same. If You Have Any Problems or Concerns, Please Contact us Prior To Leaving Feedback And We Will Gladly Assist You. Satisfaction Guaranteed. We DO NOT SHIP TO PO BOXES, And Customer Needs To Provide a Physical Address. Returns All of Our Items Are 100% Brand New, We Do Not Sell Anything Other Than That. If The Item Shows Up Defective or Broken, Please Contact Us Within 3 Business Days By Using "Ask A Question" Link Located At The Bottom of Our Listing. Your Questions/Concerns Will Be Responded Within 24 Hours Monday To Friday. Buyers May Contact us On The Weekends or Pubic Holidays And We Will Respond On The Next Working Day. Some of Our Items May Not Be Legal For Street Use in Some States. It is Your Responsibility to Check Your Local Law Enforcement for Street Use. We Will Offer Replacements, Exchange or Full Refund. 100% Satisfaction Guaranteed. We Will File Damage Or Lost Claim For Our Buyers And Guaranteed Buyers Will Receive Products In A Timely Manner. For Better And Faster Service, We Suggest Buyers Provides Their Contact Phone Numbers For us And our Customer Service Team Will Contact Them For Additional Information. Thank You. Contact Us How Should You Contact us? Please Read The Item Description And See if The item Fits Your Vehicle Exactly. If You Found Any questions, Feel Free to email us by "Ask a question" Our Office Hours Are Monday - Friday 8:00am - 5:00pm PST / 11:00am - 8:000pm ET, And We Will Reply All E-Mails In The Order It Was Receive. About Us Mirrorzone's mission is to bring the best quality automotive Mirrors to our customers with satisfaction. Our dedicated customer support team always put in 100% effort with their acquired knowledge in order to assist every customer with what they need. Throughout the process of quality control, research and developing with the factories and suppliers and our passion of automotive parts, we are confident that we can continue to innovate our products and provide the best automotive parts online shopping experience to our customers. All rights reserved.
