Description

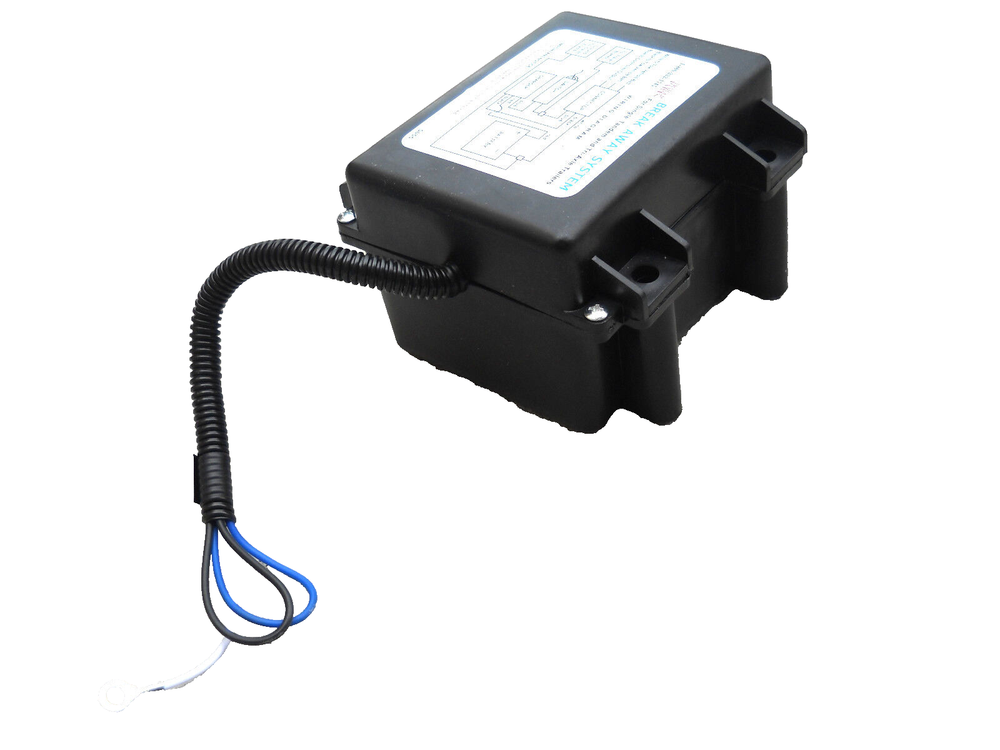

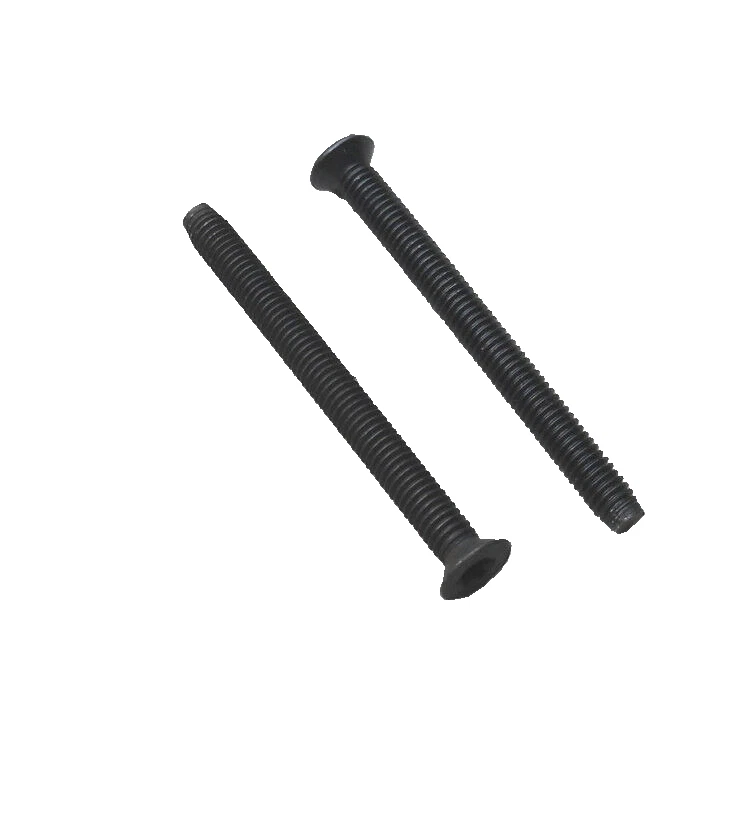

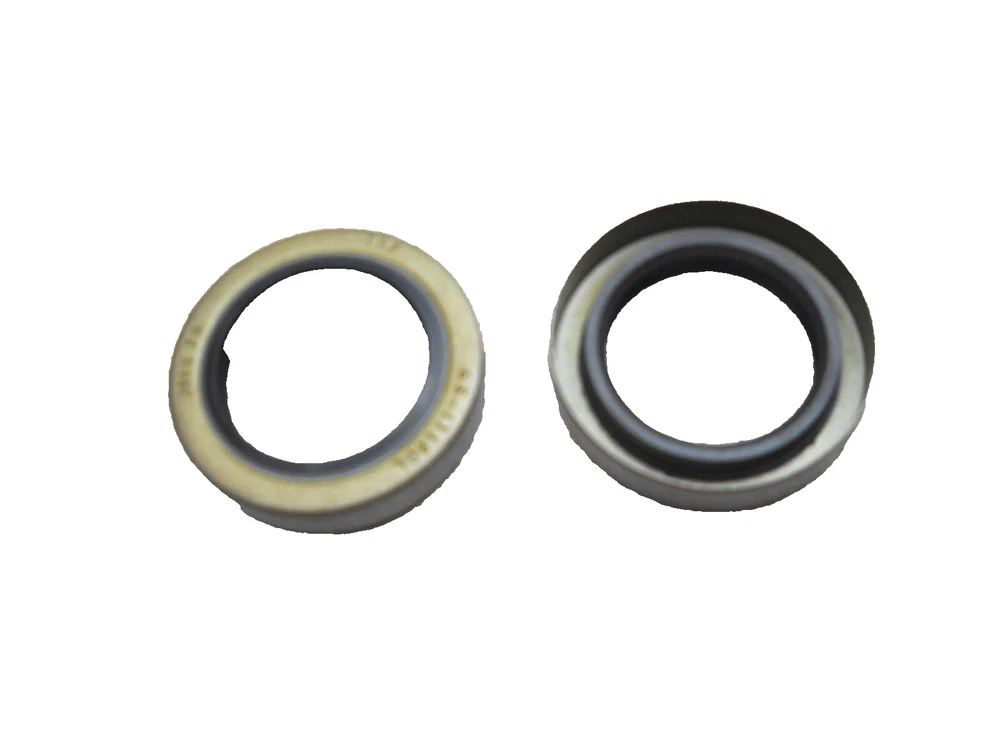

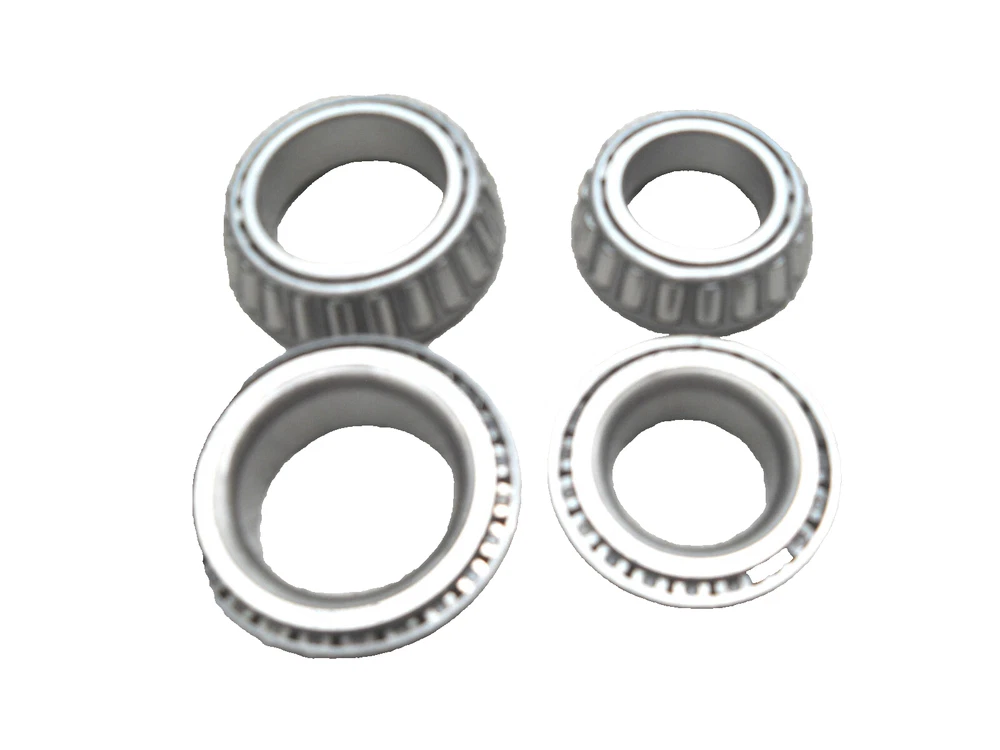

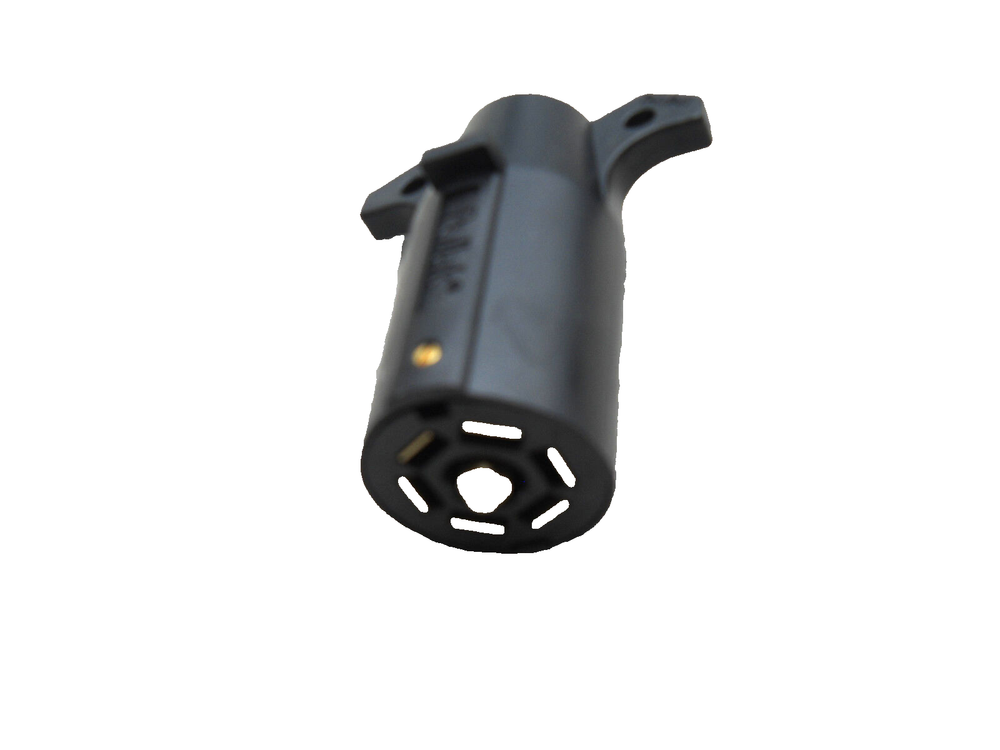

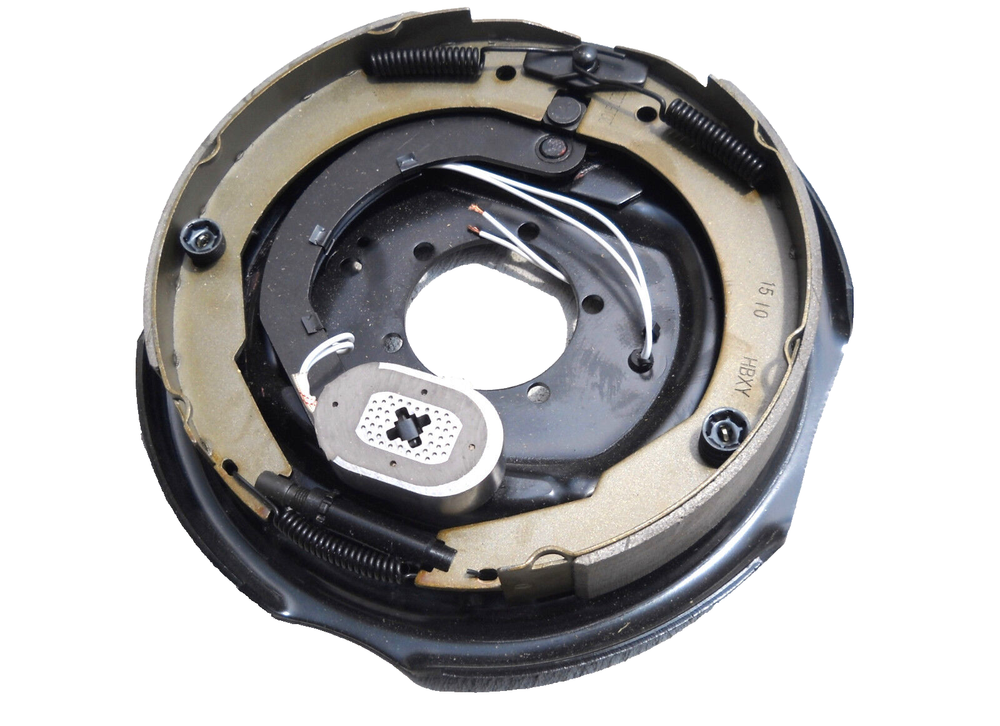

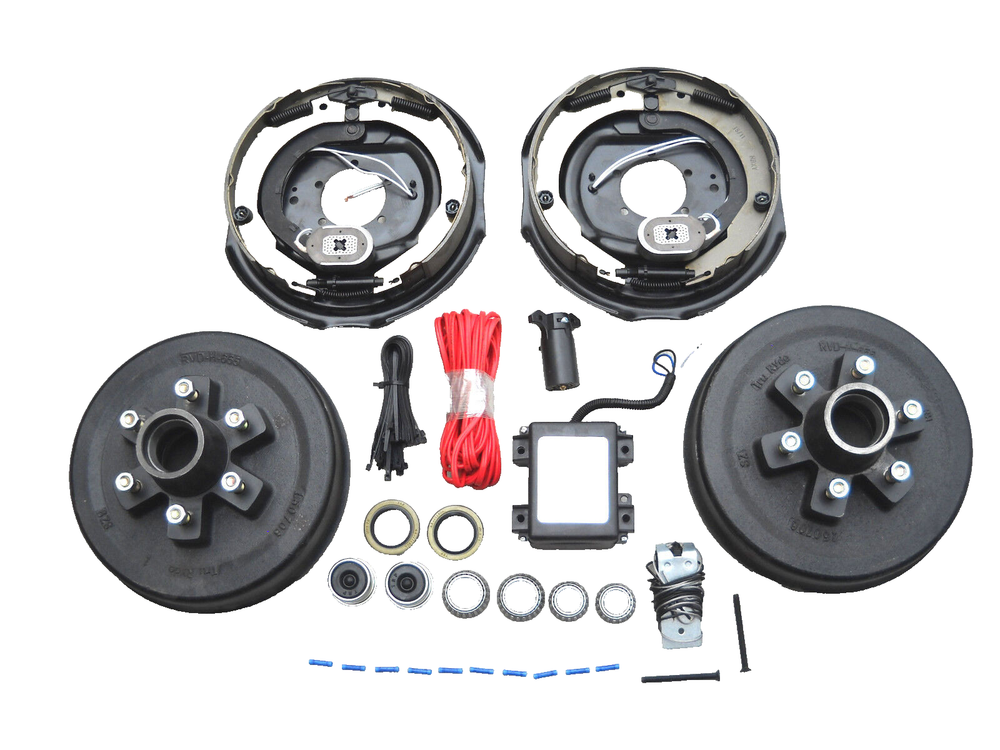

Complete Add Brakes to Your Trailer Kit with a 6 x 5.5 Bolt Pattern Part#: ABTK-363200-IMP Complete Trailer Brake Setup, with drums, seals, Brake shoes, Bearings, new hardware, backing plates, Battery Break Away, EVERYTHING for one axle! for 5200# and 6000# axles from Dexter, LCI Lippert, AL-KO, AXIS, Quality, Rockwell and others. In order for these brakes to work, you must have a brake controller and a 7 way plug installed in your truck If you have a trailer without brakes, and you want to add them, this kit has EVERYTHING you will need. This kit fits standard 7000# axle, either Spring or Torsion, EZ lube or Standard. Click here for wire and installation instructions Most 6 OR 8 bolt wheel trailers are 7000# axles. Some small trailers (usually with small tires and a 1-5/8" axle tube) will have the smaller spindles, and for those you will need a smaller brake kit ( click here for the smaller brake kits ) Look at the measurements below if you are not sure. Measurements from Center Bolt Hole to Center Bolt Hole is 2 7/8" on Backing Plate This Kit Includes: TWO - Electric Brake backing plates, 7000# per pair, 12" x 2", one left, one right TWO - New 12" brake drums, 6 x 5.5" bolt pattern with races already pressed in (click here for other bolt patterns sizes) All hardware to attach backing plates to axle mount plate (special 7/16 nuts). All brake hardware, springs, levers, magnets, shoes, etc. New inner grease seals All New Wheel Bearings (Shipping loose with kit): TWO - 2.25" 10-46 seals *If you need the 2.125" seals please let us know as we can substitute the 2.25" seals TWO - 15123 bearings (note-this drum will replace 5200# drums that use the LM67048 bearing) TWO - 25580 bearings TWELVE - Matching lug nuts, 1/2-20 TWO - New EZ Lube Dust Caps 25' Ft of 14 Gauge Two Conductor High Temperature Brake Wire (Enough for a 23 ft long trailer!) Assorted wire connectors and wire ties (Everything you need!) 4.5 Amp Hour, 12 Volt Gel Cell Rechargeable break away battery with built in battery charger Battery Case to mount to trailer Pull pin emergency break away switch New 7 Way Trailer Plug Looking for a Basic Kit that comes does not come with the breakaway, wire, and other miscellaneous parts? Click Here! In addition, you should see a small square plate welded to the axle tube (to bolt the brake plate to) If you have a 3500# axle the tube tube will be about 2 1/4" OD. If you have a 2.75" axle tube, it is the larger 5200, 6000, or 7000# axle, and if you have the smaller 1-5/8" axle tube, it has the smaller 2000/2200# axle ( see my other auctions for brake kits for these ) This auction is for a trailer with a 6 bolt, 5.5 " bolt pattern! I stock all sizes, so please check my other auctions or specify you want a different size! What size axle do you have?? Click here to figure it out! CLICK HERE if you need the Weld on Brake Flange for your axle ! Note: We offer two different types of brake kits. Basic Kits & Complete Kits Complete Kits are for adding brakes for the first time Basic Kits are for adding brakes to a second axle or replacing them. Make sure you double check that you are ordering the right bolt pattern before you pay CLICK HERE To See All Of Our Brake Kits Customer Satisfaction is our Priority! We stand behind everything that we sell and will do everything possible to assure you are satisfied!!! When you receive your purchase if you are not 100% satisfied, please email us and we will do our best to make you happy. If you still want to return your purchase, simply ship the item(s) back to us and we will refund your original purchase price. We offer money back on ALL items we sell , but unless the item was "not as described", Buyers are responsible for the postal cost of returning the items. Please carefully read the description, and confirm the item will fit your needs! We try to provide all the information you need to make a informed decision, so please read the description fully. If you are still "not sure" Ask us before buying! Buyer must pay return shipping on items simply "bought by mistake". We must be notified of the intent to return your item within 30 days of receiving the item. Items returned must be in the same condition that they were received. How to return 1,Please contact us for return address . 2,Shipping back the package: The RMA#(Return Merchant Authorization Number = Your ebay ID) must be clearly written on the return package ,Otherwise the package will be refused. Shipping We ship using USPS (Mail) and UPS at our discretion, based on lowest cost- (You must provide both mailing and physical shipping address, if different)., but we may use others at our discretion. Priority Mail or First Class Mail is used for small packages (not parcel post or media mail). Shipments to Alaska, Hawaii, and Puerto Rico may be charged a shipping cost more the amount listed for this item, please ask before you bid. Tracking numbers are automatically uploaded to your eBay order and also emailed to your email address on file with eBay as soon as we create the label. Typically, all packages leave our warehouse between 12:00PM - 4:00PM CST the next businesses day after you purchase. (we pack in the morning and ship that afternoon!) We will ship outside the United States, please contact us for shipping quotes. Any items advertised as "free Shipping" will be shipped to the lower 48 United States only. We will ship overnight UPS or USPS, for actual shipping cost. Please contact us as soon as possible - if your order is time critical. Our Phone number will be given to you once you place the order. For estimated shipping cost, vist ups.com (our zip is 61360) Normally we ship Monday thru Friday, within 24 hours of payment (weekend/holiday purchases are shipped the first business day) BUT we may ship as fast as a few minutes after you pay, so if you want or need special requirements, please call us, and confirm we are aware of your special needs. (we sometime ship orders as fast as one every 90 seconds, using a fully automated order and shipping system, special needs WILL Get missed!) We are committed to eBays 24 hour shipment policy, we are no longer able to hold orders: They must ship out within 24 hours of ordering. Payment All eBay purchases can be paid by PayPal, COD, or any other payment method allowed by eBay. You may contact us at our store Monday-Friday 9:00-5:00PM or Saturday 9:00-3:00PM CST Shipments within Illinois and order pickups are required to pay 6.5% Illinois sales tax. All eBay items are eligible for pick up at our store; 270 E Jackson Street, Seneca, IL 61360. Please call to confirm availability of parts. International Buyers- Please Note: Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer's responsibility. Please check with your country's customs office to determine what these additional costs will be prior to bidding/buying. These charges are normally collected by the delivering freight (shipping) company or when you pick the item up – do not confuse them for additional shipping charges. We ship export shipments via USPS only. We ship Priority Mail only. Please note transit times for 1st class can be over 8 to 10 weeks so we do NOT use 1st class mail. You will be provided with a tracking number and proof that we mailed it, but we can not be responsible for any item after it leaves the United States. Puerto Rico , Alaska, Hawaii and other areas outside the 48 Contiguous States may have higher shipping cost, contact before paying, for shipping Rates and Terms, and agree to shipping terms We are a Family company and have been in business over 15 years, and currently stock over 200 trailers of all types, with a full Service Department and Parts Inventory with a 10,000 sq ft Warehouse. We stock AND INSTALL what we sell! We can Answer your Questions! We do get busy at times, but you can count on is warm friendly customer service, and a honest, personal approach to doing business. Look at our feedback, and rest assured you are dealing with solid, knowledgeable company! -Robin and Paul Our Location: R and P Carriages 270 E Jackson Street Seneca, IL 61360 Our Hours are 9:00AM to 5:00PM, Central Standard Time, Monday through Friday, and 9:00AM-3:00PM Saturday We offer a full satisfaction guarantee and reasonable, so give us a chance! We allow returns, refunds or exchanges, so purchase with confidence! To directly contact us, you can email us (our hours are 9-5 M-F so give us a chance to respond)
